Air Knife System from NueAir Engineered Products typical applications replace drilled pipe, or rows of nozzles used for blow-off, cleaning, drying or cooling:

All Air Knives are provided with a Stainless Steel Shim – No Plastic

AIR KNIVES FEATURES

The Air Knives are made of an anodized aluminum body and a hard-anodized “cap”. Stainless steel models are available for high temperature and corrosive applications.

Multiple air inlet ports on either the back or ends in a compact design with additional mounting holes on the back.

Airflow amplification of approximately 30:1 compared to 3:1 for drilled pipe or open jets and tubes.

Instant on-off with no moving parts, no electricity or explosion hazard.

AIR KNIVES BENEFITS

• Built and designed for significantly longer life in difficult environments than many competing products.

• Flexible mounting options and easy to fit in small spaces.

• Energy reduction in compressed air use up to 90% and noise reductions of 10 dbA.

• Maintenance free with output easily controlled, safe to use.

AIR KNIVES BENEFITS

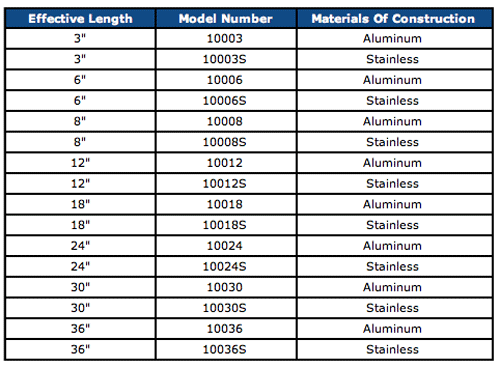

Blow Off System Air Knife is available in eight standard lengths:
3", 6", 8", 12", 18", 24", 30" and 36".

Custom lengths are available on special order including lengths combining several units.

Blow Off System Air Knife comes with a standard machined .002" outlet gap which will work for 90% of all applications encountered. If greater force is required, a .002" shim may be installed to open the gap for greater flow. Materials of construction are either anodized aluminum or stainless steel.
